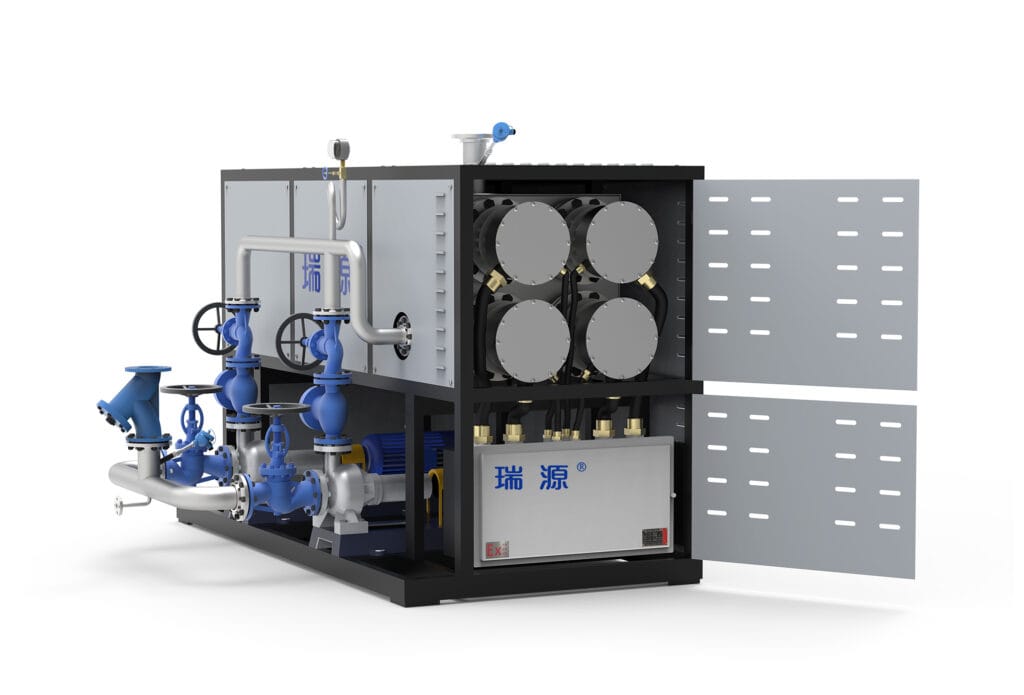

In-depth Analysis of Thermal Oil Boiler Core Parameters: A Comprehensive Guide from Selection to Safe Operation
I. Basic Performance Parameters: Thermal Power and Efficiency
The rated thermal power serves as the primary indicator of a thermal oil boiler’s heating capacity. Common units include kW or MW (Megawatts), although some industries still adhere to the habit of using ×10⁴kcal/h. Mainstream models cover a wide range; for instance, oil/gas-fired horizontal boilers typically range from 1,400 kW to 14,000 kW, whereas coal-fired series can extend to 29,200 kW.
Thermal efficiency is the key metric for evaluating energy conservation, influenced significantly by fuel type and tail-end waste heat recovery configurations. According to the NB/T 47035 standard, the thermal efficiency at rated load must be ≥75% for coal-fired boilers, ≥85% for gas-fired types, and ≥90% for electric heating models. Furthermore, by adopting advanced combustion technologies and waste heat recovery devices (such as economizers and air preheaters), the thermal efficiency of gas-fired boilers can exceed 92%.
II. Thermodynamic Parameters: Temperature, Pressure, and Flow Velocity
1. Working Temperature and Design Temperature
The rated working temperature for liquid-phase thermal oil boilers usually does not exceed 320°C, limited by the physicochemical properties of mineral thermal oils. However, through optimized medium flow processes, certain heavy oil or specially designed industrial furnaces can output heat energy up to 350°C under low-pressure conditions of 0.3-1.0 MPa. Designers must ensure the design temperature exceeds the maximum usage temperature and allows leeway for the temperature difference between inlet and outlet oil. Ideally, an economic and safe temperature difference should stay within 30°C to prevent coking caused by excessive oil film temperature.
2. Pressure System
The rated working pressure for liquid-phase furnaces typically ranges from 0.8 MPa to 1.0 MPa. Nevertheless, the design pressure must account for safety valve activation and system hydraulic characteristics. Codes require the design pressure for liquid-phase furnaces to be 1.05 to 1.2 times the working pressure. Additionally, the pressure difference between the inlet and outlet should ideally exceed 0.15 MPa to ensure circulating power. For vapor-phase furnaces, the design pressure must reach 1.2 to 1.5 times the working pressure.
3. In-tube Flow Velocity Control
Flow velocity serves as the core control indicator for preventing local overheating and aging of the thermal oil. Design codes specify that flow velocity in radiant section furnace tubes must be maintained at 2-4 m/s, while convection section tubes require 1.5-2.5 m/s. Sufficient velocity not only enhances heat transfer but also ensures the thermal oil remains in a turbulent state, thereby avoiding cracking and coking induced by boundary layer overheating.
III. Medium Characteristics and System Matching Parameters
1. Thermal Oil Performance Indicators
The quality of thermal oil directly determines the long-term stability of the system. Key monitoring indicators include:
Kinematic Viscosity: Typically required to be ≤50 mm²/s at 40°C. A viscosity change rate exceeding 15% during operation (compared to new oil) indicates deterioration.
Acid Value and Carbon Residue: During operation, the acid value should be ≤0.5 mgKOH/g, and the increment of carbon residue should be ≤0.2%. Once the carbon residue reaches 1.5%, the oil should be discarded.
Thermal Stability: After heating at 280°C for 72 hours, cracking products should be ≤10% with no obvious coking.
2. Circulation System and Expansion Tank
Circulating Pump Selection: The flow rate must satisfy velocity requirements, and the head must overcome the resistance of the entire system (including valves and heat exchangers). Installing standby pumps with variable frequency control at critical process points is highly recommended.
Expansion Tank: The volume must accommodate the total expansion of thermal oil from ambient to working temperature. Typically, this represents 20% to 30% of the total system oil volume and should not be less than 1.3 times the expansion volume. Installation must be positioned higher than the highest point of the system. Placing the tank directly above the heater is strictly prohibited. The vertical clearance between the tank bottom and the highest system point should not be less than 1.5 meters, and nitrogen sealing is advisable to isolate oxygen.
IV. Environmental and Safety Control Parameters
As environmental regulations become stricter, exhaust gas temperature and pollutant emissions have emerged as critical indicators:
- Exhaust Gas Temperature: Usually designed between 350°C and 400°C. It is recommended to control the temperature difference between the exhaust gas and the working thermal oil within 80-120°C to balance heat exchange efficiency and the size of the heating surface. Through waste heat recovery, the final exhaust temperature can drop below 170°C.
- Environmental Emissions: With low-nitrogen combustion technology, NOx emissions from gas-fired thermal oil boilers can fall below 30 mg/m³. Soot emission concentrations must also meet the requirements of the GB13271-2014 standard.
- Safety Interlocks: The system should feature over-temperature protection (e.g., alarm at ≥350°C and shutdown at ≥360°C for radiant section wall temperature, with a response time ≤5 seconds), flow differential pressure monitoring, and low-level liquid interlocks.
Conclusion
The parameter system of a thermal oil boiler integrates thermal calculation, fluid mechanics, and material science. During selection, users should not only focus on rated thermal power but also comprehensively evaluate the matching of working temperature with flow velocity, the redundancy design of the circulation system, and the lifecycle management of the thermal oil. Relying on precise calculations from professional boiler manufacturers (such as maximum film temperature calculations per SY/T 0524 standard), combined with regular oil testing and system maintenance, enables efficient, safe, and long-cycle operation of the heating system.
